Water Cooled Power Cables

WATER COOLED POWER LEAD FOR INDUCTION FURNACE We make use of electrolytic grade copper conductors for low power loss. Copper conductors with conductivity.

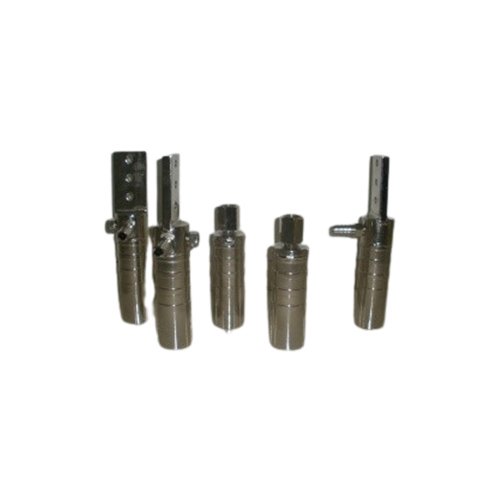

we use lead free brass in end connection to provide strength to end connection. End connections are made of CNC machine so there is no chance of error and water leakage. The carbon free hose which provides good electric insulation.

the crimping of end connection of cable is done by high pressure hydraulic press which gives proper finishing.

End of cable is clamped with heavy-duty stainless-steel clamp. We are also doing repairing of water-cooled cable. We provide maximum power and maintaining proper flow test and pressure test. We make cable with engineering & design collaboration. Our cables are properly thermal & electrically insulated.

we make water cooled cable suitable for inductotherm, inductoheat, electrotherm, megatherm, abp induction furnace, pillar induction furnace we are making cable as per customer requirement.

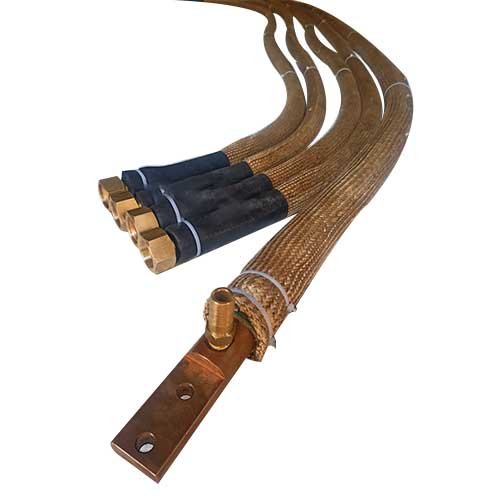

Water Cooled Power Lead For Inductotherm Induction Furnace

IFT induction melting furnace Water Cooled Power Leads are assembled with precision using premium materials to ensure maximum flow.

High Performance

High performance demands that a water-cooled lead have good electrical efficiency and a rugged, durable hose. IFT power leads are copper rated at 99.9% electrical conductivity by the IACS and soldered to the terminal to ensure optimum contact and conductivity.

This cable is covered with a non-conductive hose constructed of a nitrile tube, multi-ply reinforced center and a neoprene cover, with a 1000-psi minimum burst pressure and a continuous operating pressure of 250 psi.

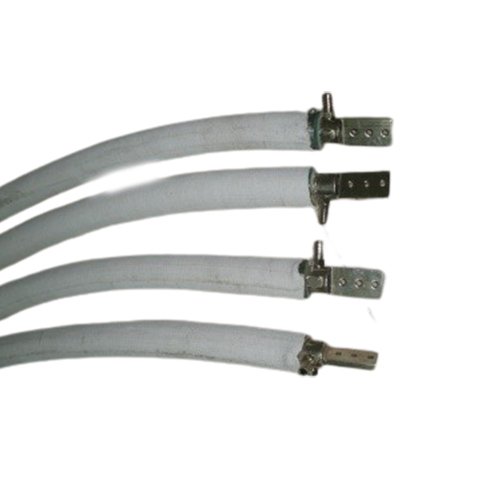

Flange-type terminals are resurfaced and silver-plated for optimum contact and electrical conductivity.

High Flow

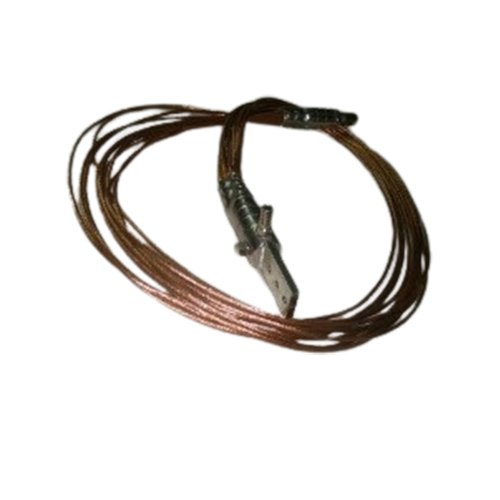

A custom designed, high tonnage press used in conjunction with special hardened custom dies that produce openings to provide consistent, maximum water flow through every terminal manufactured. The heavy gauge, strong yet flexible, copper cable resists breaking and bird-nesting that can restrict flow. Also, the multi-ply reinforcement of the hose is flexible, but resists collapsing or kinking. The cable is helixed around a spiral center to maintain maximum and consistent water flow for flange-type cables and the newer designs incorporating internal core springs or hoses.

Low Maintenance

For terminals requiring a standard 37° flare, IFT uses a hydraulically powered production tool. This power flarer produces a precise and consistent flare on each terminal to assure a watertight connection. Each hose is secured with pneumatically applied stainless steel clamps, utilizing the most technologically advanced tooling available on the market. This equipment assures consistent clamping pressure at each application. This results in leak-proof joints.

Induction Furnace Technomart is the Leading manufacturer & exporter for Steel Plant Consumables & Water Cooled Induction Power Cables at India, USA, Australia, England, Spain, Egypt, Saudi Arabia, UAE, Indonesia, Iran, Thailand, Brazil, Pakistan, Kenya, Ghana, South Africa, Tanzania, Uganda.

The rugged construction of the hose provides excellent resistance to abrasion and will not be damaged if continuously subjected to 200°F temperatures. The combination of high-performance, high-quality materials and state-of-the-art equipment results in an efficient, low maintenance and long lasting product.

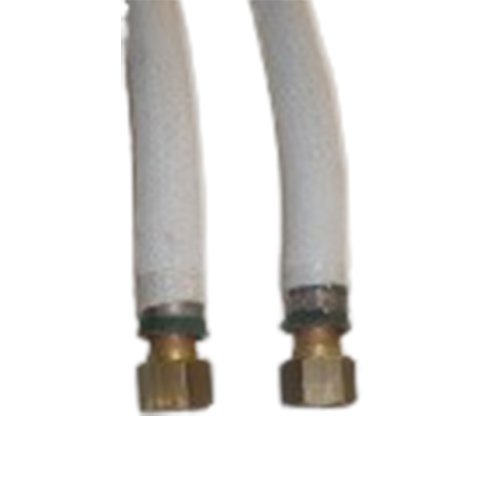

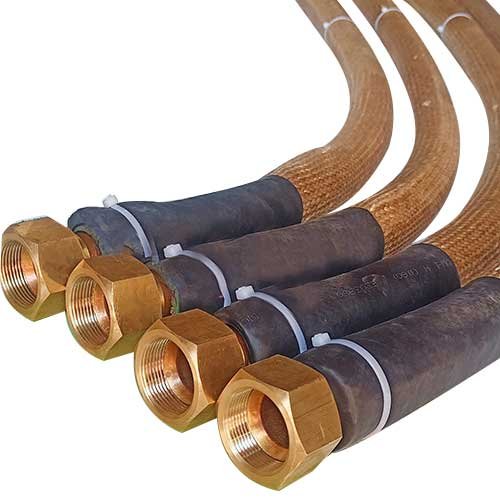

12 Nut - ¾” Connection
12 Nut - 1” Connection
16 Nut -1” Connection
16 Nut - 1¼” Connection
20 Nut - 1¼” Connection
20 Nut - 1½” Connection

24 Nut - 1½” Connection
24 Nut - 2” Connection
32 Nut - 2” Connection
Flange Type Connection
Flat Type Connection

Water Cooled Power Cable For Electrotherm Induction Furnace

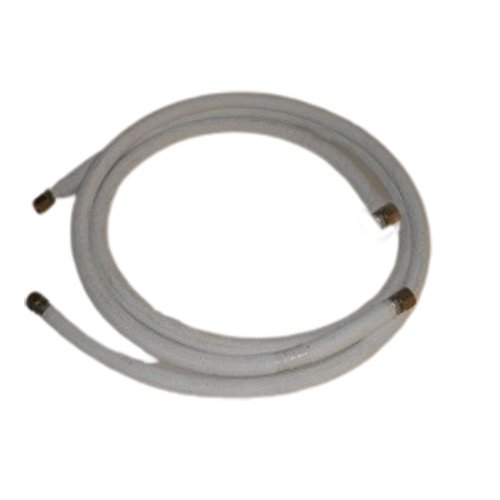

Our water-cooled leads consist of the highest-grade copper cable enclosed within a high-grade rubber hose. We take the guess work out by calculating the proper hose size and number of cables to ensure proper water flow and the highest efficiency. They are secured with stainless steel bands using a pneumatic press with ensure repeatable pressure.

High Current Capacity Leads Provide Lower Power Losses

When you choose Inductotherm you can be sure you are getting the right leads for your Inductotherm melting or heating system. We make the highest quality, high-current capacity leads for any application where flexible leads are required for carrying currents in frequencies from 60 to 10,000 hertz. With over 20 years of experience, you can trust that these leads were designed with efficiency in mind. Our water-cooled flexible leads provide maximum service life, lower power losses and reduced maintenance costs on any application where flexible leads are required. We use a flexible copper cable enclosed within a high-grade rubber hose and fitted with a flare type terminal fitting that facilitates making both water and electrical connections easier.

As your OEM, we can assess your needs and supply guaranteed solutions. Other benefits include

Our non-conductive hose provides longer life and is less likely to kink
We take the guess work out by calculating the correct hose size needed, ensuring proper water flow
By determining the proper number of copper cables necessary, you achieve the highest efficiency
